This quick guide shows the necessary configuration steps to bridge DELFTship into Virtual Reality for SteamVROculus Rift, Oculus Quest 1 & 2HTC Vive (Pro), HTC FocusHP Reverb and Windows Mixed Reality HMDs. The guide also applies for bridging DELFTship for Powerwalls, 3D stereo projectors, CAVEs and DOMEs.

Download the moreViz VR Bridge Software here.

Guide to bridge DELFTship into Virtual Reality with moreViz

  • Start the moreViz Launcher
  • Notice the moreViz-Tray icon (next to system time) and right-click it, select “moreViz Application Enabler”

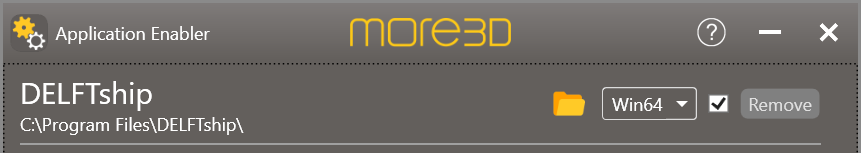

  • Click “Locate known Apps”. The more3D application enabler will search the standard program files folders for known DELFTship installations and add them to the list.

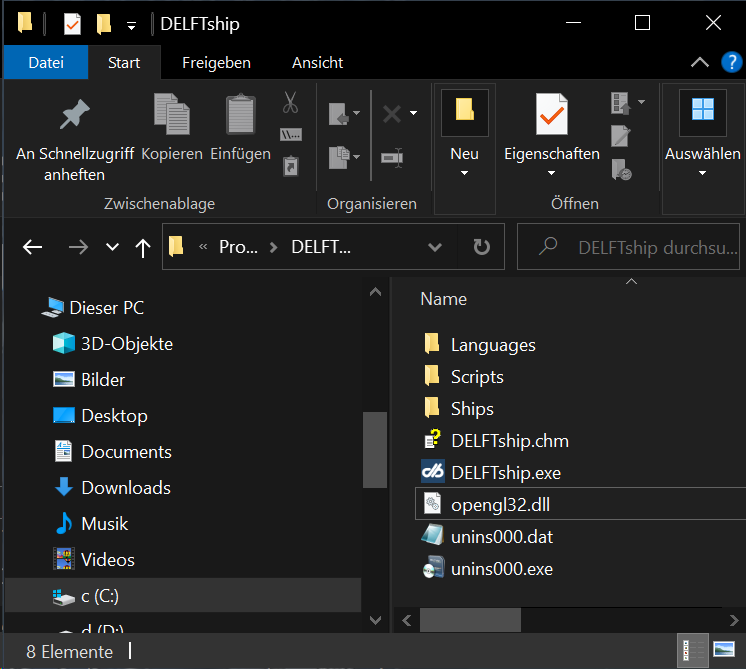

  • If your DELFTship is installed to a non standard directory, please click “Add Application”, locate your “DELFTship.exe”. The standard path is: “X:\Program Files\DELFTship”
  • Click the Enable button right next to the newly created entry.
  • Close the Application Enabler. The moreViz VR bridging function is now available for the DELFTship installation.

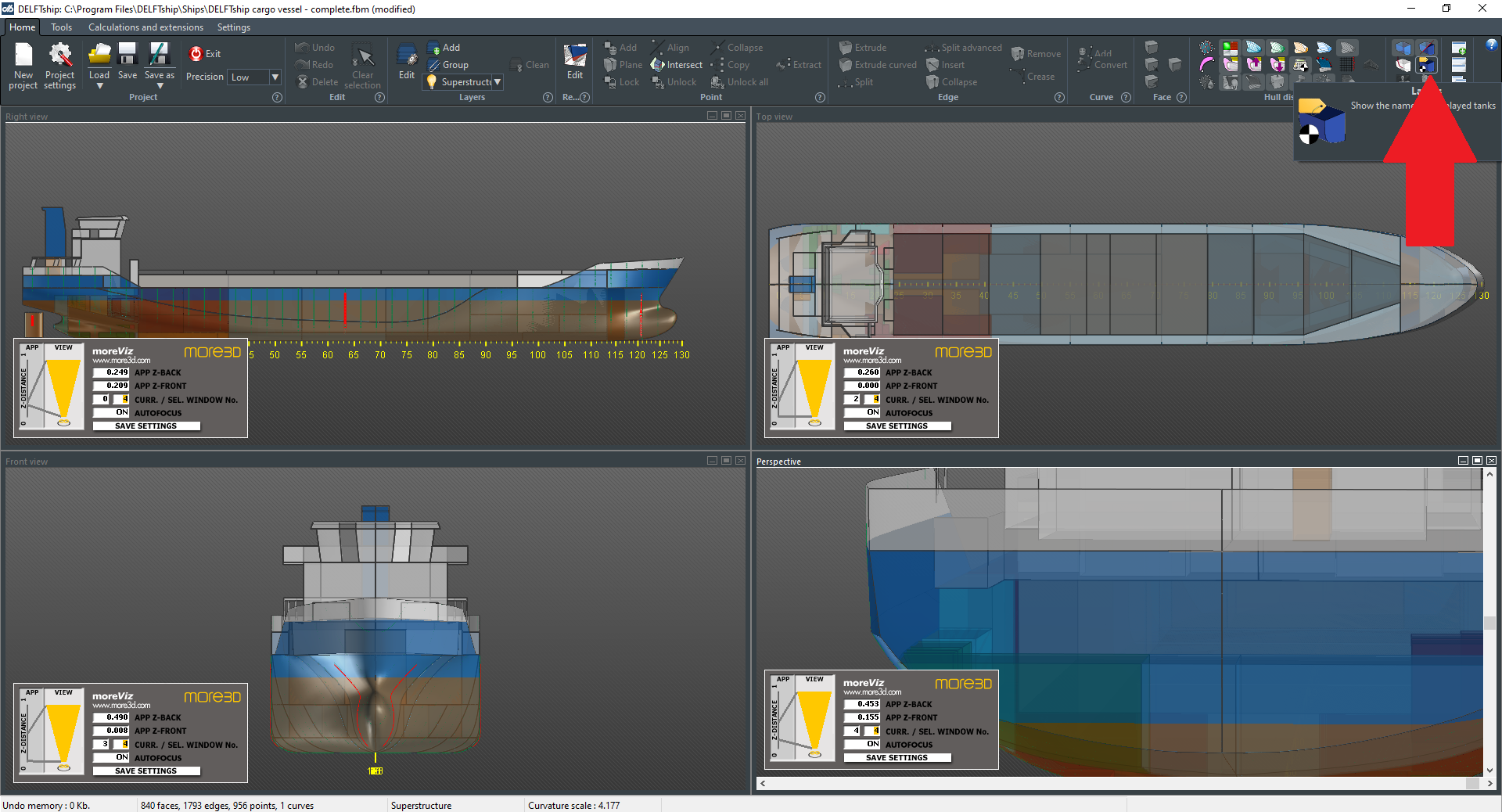

  • Start the moreViz client and then launch DELFTship. After loading a file, disable the Labels in DEFLTship.
  • To switch between the different viewport, watch this 2 minute tutorial:

DELFTship running in moreViz with Visualization for a four sided CAVE in Virtual Reality (anaglyph mode)

In case there are any issues with the visualization in the moreViz client, make sure to
have followed these guides:

  • Dual GPU & Quadro guide: For frozen or black image in client
  • Fit the 3D into the host app’s viewport: in case geometry is missing in the moreViz client

Quick Tipps:

  • For best performance with HMD, set the connection type to shared memory in the moreViz Launcher’s Connection Settings (only available for single-client setups on the local computer).
  • For best visual impression, set AntiAliasing / Pixel Density to 2x (or higher) in the moreViz Launcher’s Client Settings
  • SteamVR only: To operate the host application’s graphics user interface, check the SteamVR Desktops function of the SteamVR Dashboard.
