The guide is designed to be brief and yet covering all needed steps on how to enable the 3D Stereo Plugin for GoCAD. This is a one-time setup and not needed to be repeated once setup properly.

GoCAD in 3D Stereo for 3D Projectors, 3D Displays, 3D TVs and Autostereoscopic Displays
GoCAD in 3D Stereo for 3D Projectors, 3D Displays, 3D TVs and Autostereoscopic Displays

I. Prepare the 3D Stereo Plugin

1) Please install moreStereo3D.

2) Start moreStereo3D.

II. Configure the 3D Stereo Plugin for GoCAD

3) Right click the moreStereo3D Tray Icon (next to your system time) and select “more3D Stereo Enabler”

4) Click the “Locate known Apps” Button. The more3D stereo enabler will search the folders “C:\Program Files” and “C:\Program Files (x86)” for your GoCAD installation and you can apply the 3D Stereo Plugin for GoCAD.

In case you have installed GoCAD into a non-standard installation directory, please continue with step 5). If the more3D Stereo Enabler found your GoCAD installation properly, please continue on step 8)

5) Click the “Add Application” Button.

6) Navigate to your GoCAD directory. The folder might look close to this:
“E:\Program Files\Paradigm\SKUA-GOCAD-2013.3p2\Gocad\bin\win32-i86-vs2010.shared”

7) Select the file “GoCAD.exe” and press “Open”.

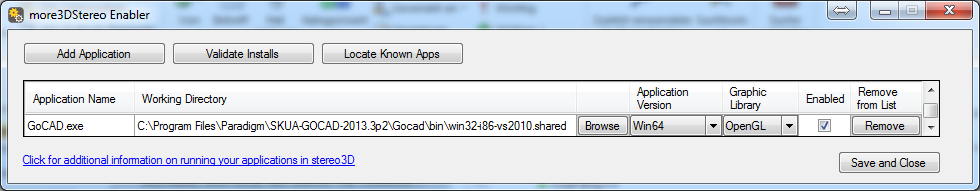

8a) Please set “Application Version” to “Win32” for a 32-Bit Version of GoCAD. Set “Graphic Library” to “OpenGL” and check the “Enabled”-Checkbox. Press “Save and Close”.

8b) Please set “Application Version” to “Win64” for a 64-Bit Version of GoCAD. Set “Graphic Library” to “OpenGL” and check the “Enabled”-Checkbox. Press “Save and Close”.

III. Launch GoCAD

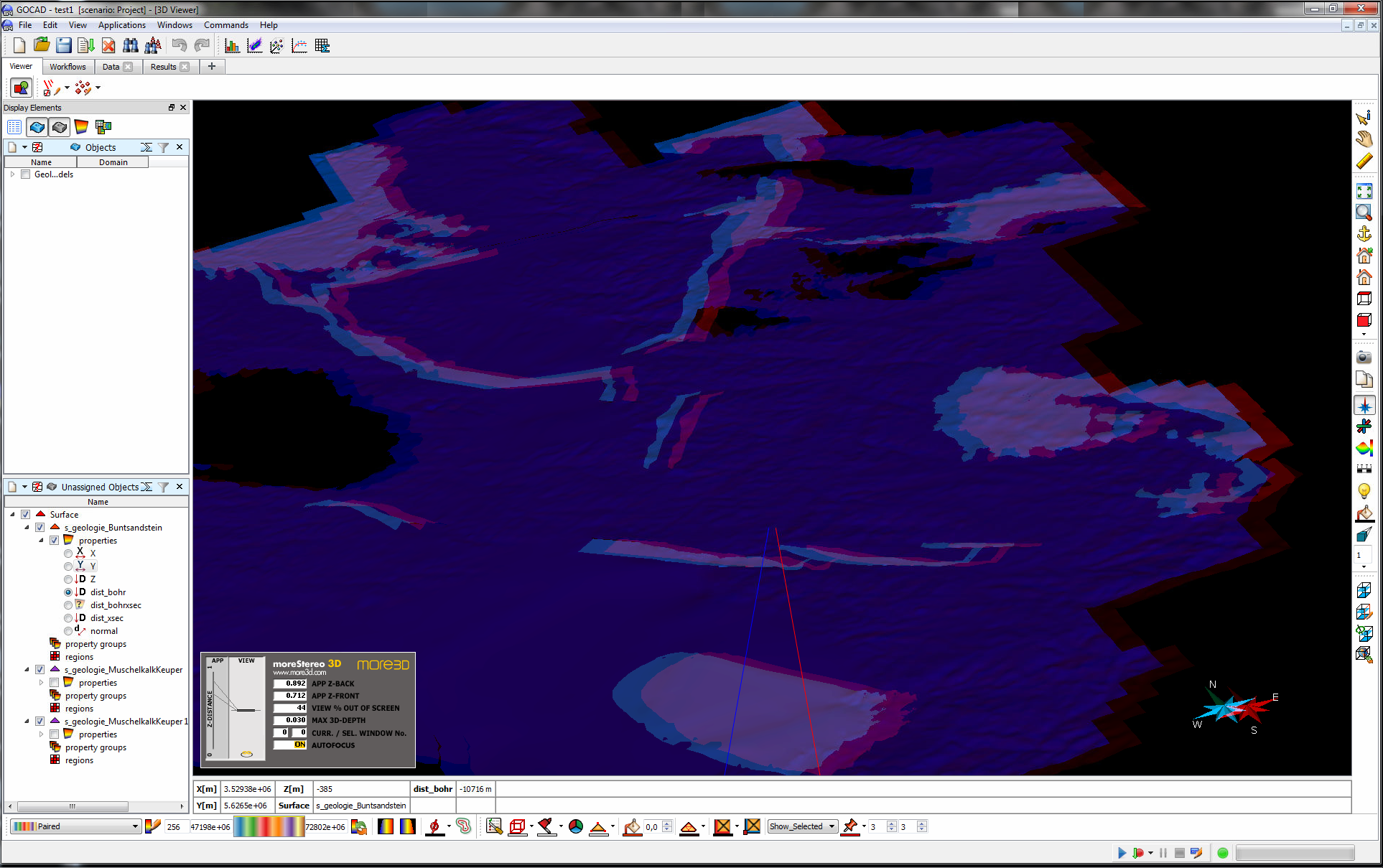

9) Start GoCAD. Load a 3D Scene. In case there is not 3D visible, please select “Perspective View” from the right hand toolbar.

10) Press NUM* while rotating the scene/model to display in the in-app 3D-Stereo control panel to finetune the 3D effect according to your preference.

Are you not sure how to create a good 3D effect? Find out how in this tutorial video (6 minutes):


moreStereo3D provides 3D Stereo for glasses-free 3D displays, 3D Monitors, 3D TVs and 3D Projectors from within your application.
moreStereo3D works with many OpenGL based applications, it supports Side By Side, Top Bottom, Frame Sequential and Quad Buffered 3D Stereo output (any many more).
