This quick guide shows the necessary configuration steps to bridge Ansys Ensight into Virtual Reality for SteamVR, Oculus Rift, Oculus Quest 1 & 2, HTC Vive (Pro), HTC Focus, HP Reverb and Windows Mixed Reality HMDs. The guide also applies for bridging Ansys Ensight for Powerwalls, 3D stereo projectors, CAVEs and DOMEs.
Guide to bridge Ansys Ensight into Virtual Reality:
- Start the moreViz Launcher

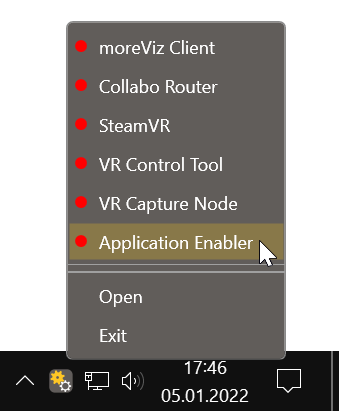

- Notice the moreViz-Tray icon (next to system time) and right-click it, select “moreViz Application Enabler”
- Click “Locate known Apps”. The more3D application enabler will search the standard program files folders for known Ansys Ensight installations and add them to the list.

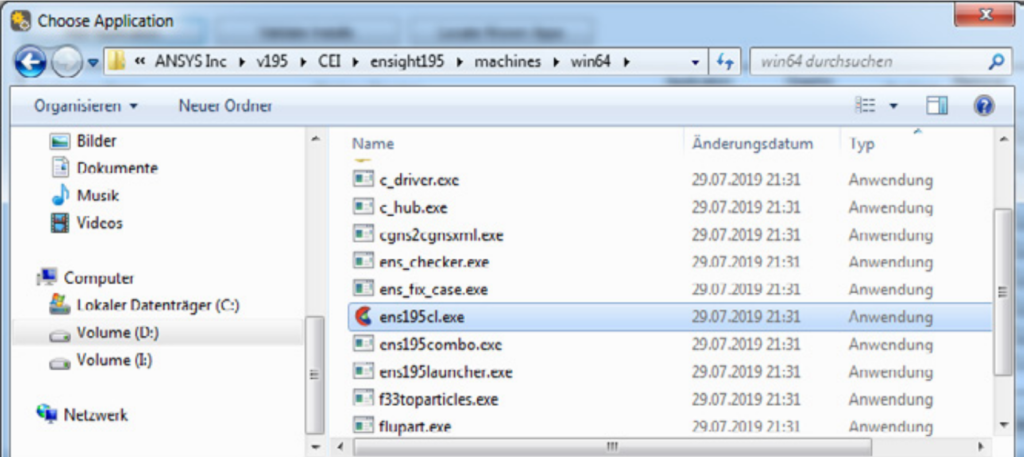

- If your Ansys Ensight is installed to a non standard directory, please click “Add Application”, locate your “ens195cl.exe”. The standard path is
X:\Program Files\ANSYS Inc\v195\CEI\ensight195\machines\win64\”
(“v195” in the path might differ, based on the ansys/ensight version).
- Place the enable checkmark for the newly created entry.
- Close the Application Enabler.
- The moreViz VR bridging function is now available for the Ansys Ensight installation.
In case there are any issues with the visualization in the moreViz client, make sure to
have followed these guides:
- Dual GPU & Quadro guide: For frozen or black image in client
- Fit the 3D into the host app’s viewport: in case geometry is missing in the moreViz client
- For best performance with HMD, set the connection type to shared memory in the moreViz Launcher’s Connection Settings (only available for single-client setups on the local computer).
- For best visual impression, set AntiAliasing / Pixel Density to 2x (or higher) in the moreViz Launcher’s Client Settings
- SteamVR only: To operate the host application’s graphics user interface, check the SteamVR Desktops function of the SteamVR Dashboard.
