This quick guide shows the necessary configuration steps to bridge Autodesk Moldflow Communicator into Virtual Reality for SteamVR, Oculus Rift, Oculus Quest 1 & 2, HTC Vive (Pro), HTC Focus, HP Reverb and Windows Mixed Reality HMDs. The guide also applies for bridging Autodesk Moldflow Communicator for Powerwalls, 3D stereo projectors, CAVEs and DOMEs.
Guide to bridge Autodesk Moldflow into Virtual Reality:
- Start the moreViz Launcher
- Notice the moreViz-Tray icon (next to system time) and right-click it, select “moreViz Application Enabler”
- Click “Locate known Apps”. The more3D application enabler will search the standard program files folders for known Autodesk Moldflow installations and add them to the list.

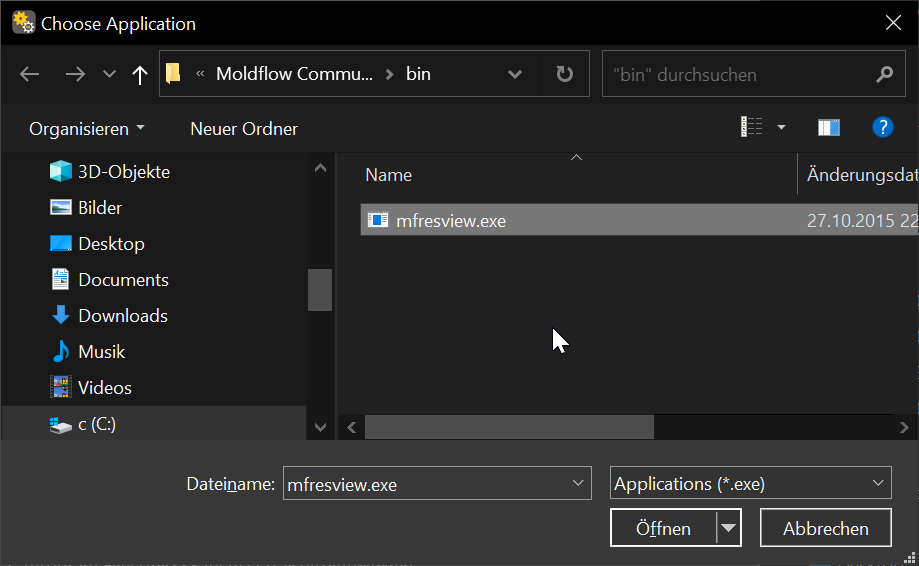

- If your Moldflow Communicator is installed to a non standard directory, please click “Add” and locate the “mfresview.exe”. The standard path is X:\Program Files\Autodesk\Moldflow Communicator 20xx\bin” (xx= year release number, e.g. 18).
- Click the Enable button right next to the newly created entry.
- Start the moreViz client and then launch Moldflow. Load a Moldflow project file. In Moldflow, click on “File” and select “Options”.

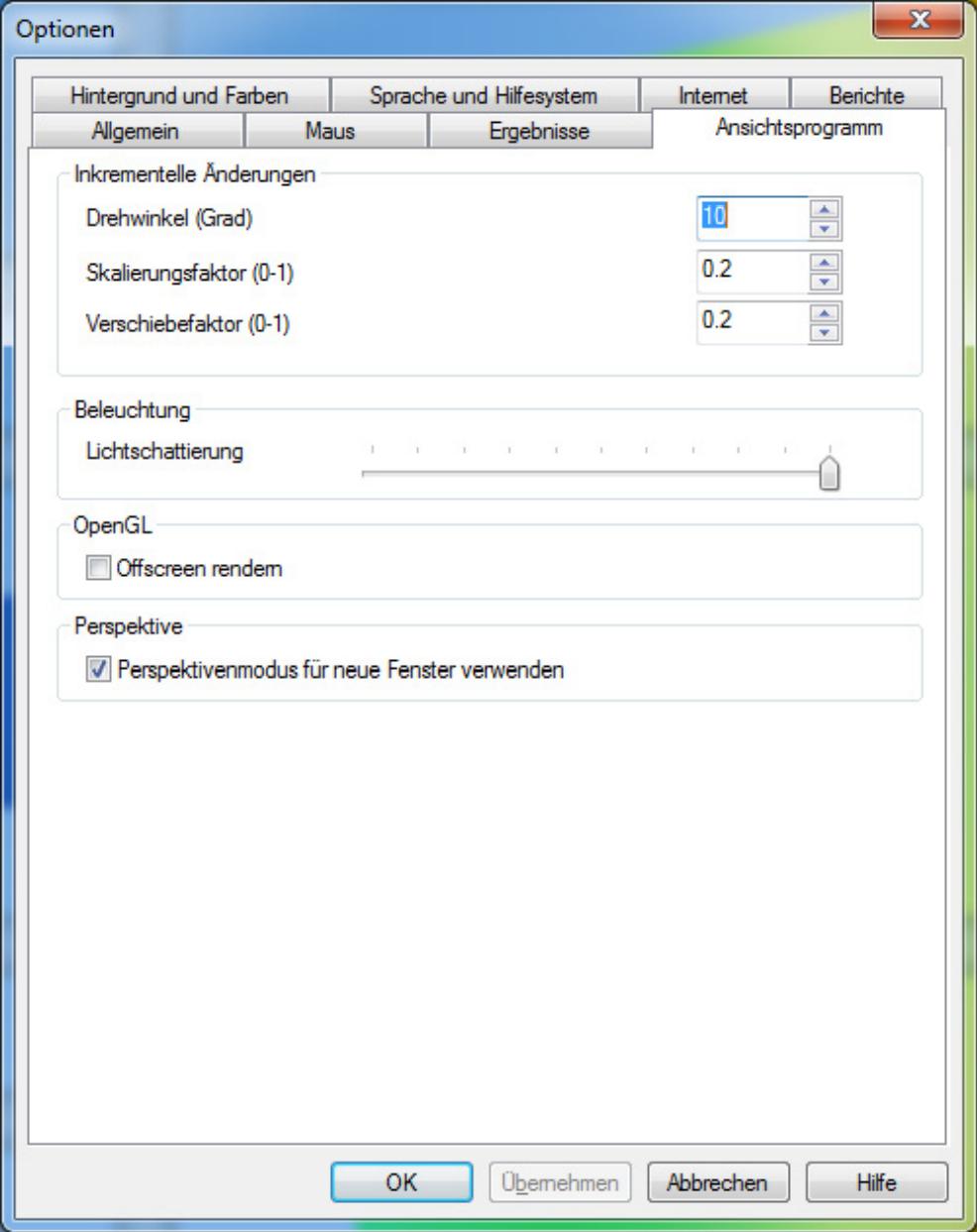

- Go To “Viewing Options” and tick the checkbox at “Use Perspective Mode for new windows”.
In case there are any issues with the visualization in the moreViz client, make sure to have followed these guides:
- Dual GPU & Quadro guide: For frozen or black image in client
- Fit the 3D into the host app’s viewport: in case geometry is missing in the moreViz client
Quick Tipps:
- For best performance with HMD, set the connection type to shared memory in the moreViz Launcher’s Connection Settings (only available for single-client setups on the local computer).
- For best visual impression, set AntiAliasing / Pixel Density to 2x (or higher) in the moreViz Launcher’s Client Settings
- SteamVR only: To operate the host application’s graphics user interface, check the SteamVR Desktops function of the SteamVR Dashboard.
