This quick guide shows the necessary configuration steps to bridge Dassault Systems ICEM Surf into Virtual Reality for SteamVROculus Rift, Oculus Quest 1 & 2HTC Vive (Pro), HTC FocusHP Reverb and Windows Mixed Reality HMDs. The guide also applies for bridging Dassault Systems ICEM Surf for Powerwalls, 3D stereo projectors, CAVEs and DOMEs.

Guide to bridge Dassault Systems ICEM Surf into Virtual Reality:

  • Start the moreViz Launcher
  • Notice the moreViz-Tray icon (next to system time) and right-click it, select “moreViz Application Enabler”
  • Click “Locate known Apps”. The more3D application enabler will search the standard program files folders for known Dassault Systems ICEM Surf installations and add them to the list.

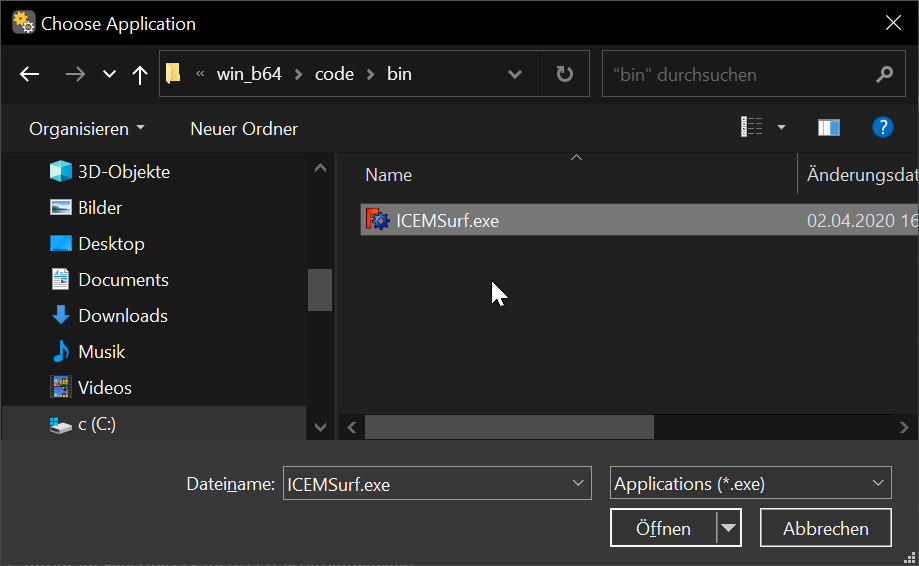

  • If your Dassault Systems ICEM Surf is installed to a non standard directory, please click “Add Application”, locate your “ICEMSurf.exe”. The standard path is
    X:\Program Files\ICEM\win_b64\code\bin”
  • Place the enabled checkmark for the newly created entry.
  • Close the Application Enabler. The moreViz VR bridging function is now available for the ICEM Surf installation.

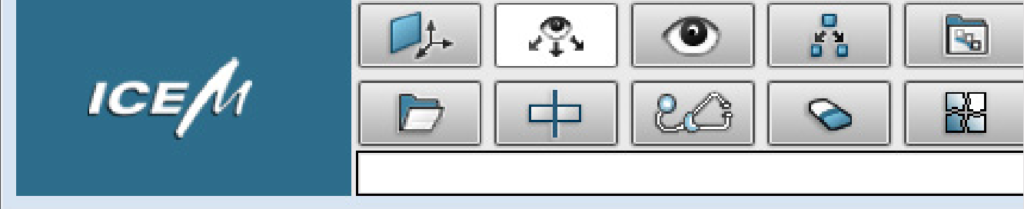

  • Start the moreViz client and then launch ICEM Surf. Load a ICEM Surf project file. In ICEM Surf, click on “View” (eye symbol with three arrows in lower button bar).

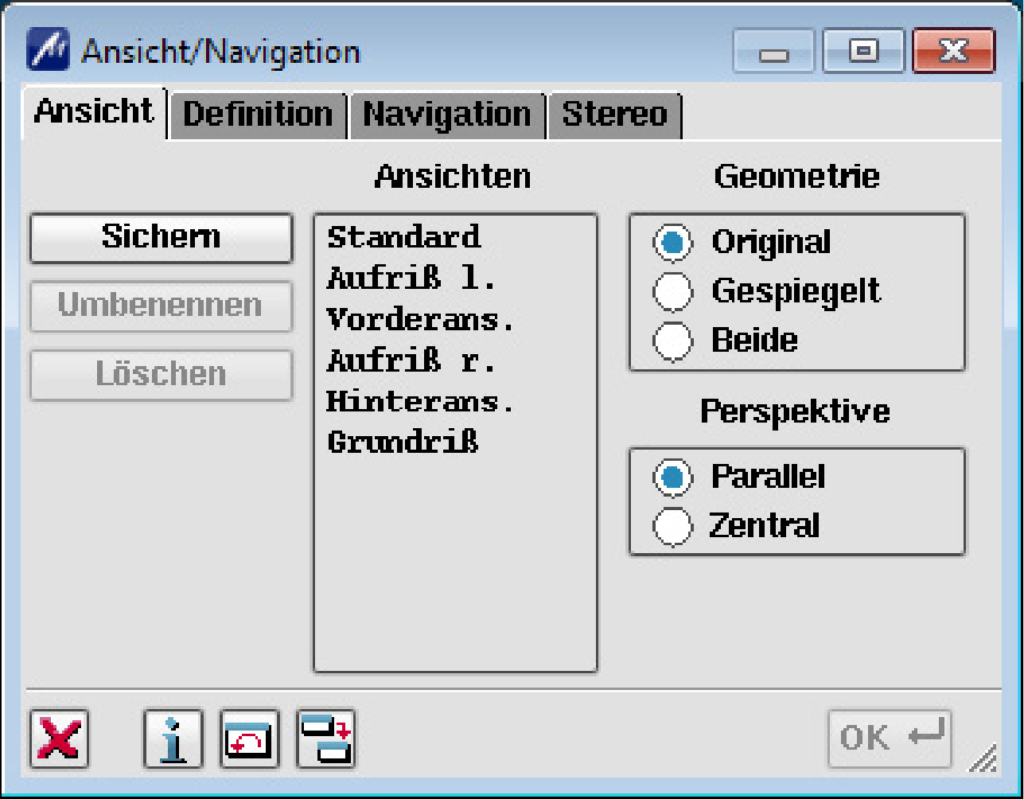

  • Then choose the “Perspective” option “Central” (instead of “Parallel”)

In case there are any issues with the visualization in the moreViz client, make sure to have followed these guides:

  • Dual GPU & Quadro guide: For frozen or black image in client.
  • Fit the 3D into the host app’s viewport: in case geometry is missing in the moreViz client.

Quick Tipps:

  • For best performance with HMD, set the connection type to shared memory in the moreViz Launcher’s Connection Settings (only available for single-client setups on the local computer).
  • For best visual impression, set AntiAliasing / Pixel Density to 2x (or higher) in the moreViz Launcher’s Client Settings
  • SteamVR only: To operate the host application’s graphics user interface, check the SteamVR Desktops function of the SteamVR Dashboard.
