This quick guide shows the necessary configuration steps to bridge ESRI ArcGIS Desktop / ArcScene into Virtual Reality for SteamVR, Oculus Rift, Oculus Quest 1 & 2, HTC Vive (Pro), HTC Focus, HP Reverb and Windows Mixed Reality HMDs. The guide also applies for bridging ESRI ArcGIS Desktop / ArcScene for Powerwalls, 3D stereo projectors, CAVEs and DOMEs.
Guide to bridge ESRI ArcGIS Desktop / ArcScene into Virtual Reality:
- Start the moreViz Launcher
- Notice the moreViz-Tray icon (next to system time) and right-click it, select “moreViz Application Enabler”
- Click “Locate known Apps”. The more3D application enabler will search the standard program files folders for known ESRI ArcGIS Desktop / ArcScene installations and add them to the list.
- If your ESRI ArcGIS Desktop / ArcScene is installed to a non standard directory, please click “Add”, locate the “ArcScene.exe” file. The standard path is:
“C:\Program Files (x86)\ArcGIS\Desktop10.8\bin\ArcScene.exe”
- Click the Enable button right next to the newly created entry.
- Close the Application Enabler.
- The moreViz VR bridging function is now available for the ESRI ArcGIS Desktop / ArcScene installation.
- Start the moreViz Client(s) and then start ESRI ArcGIS Desktop / ArcScene.

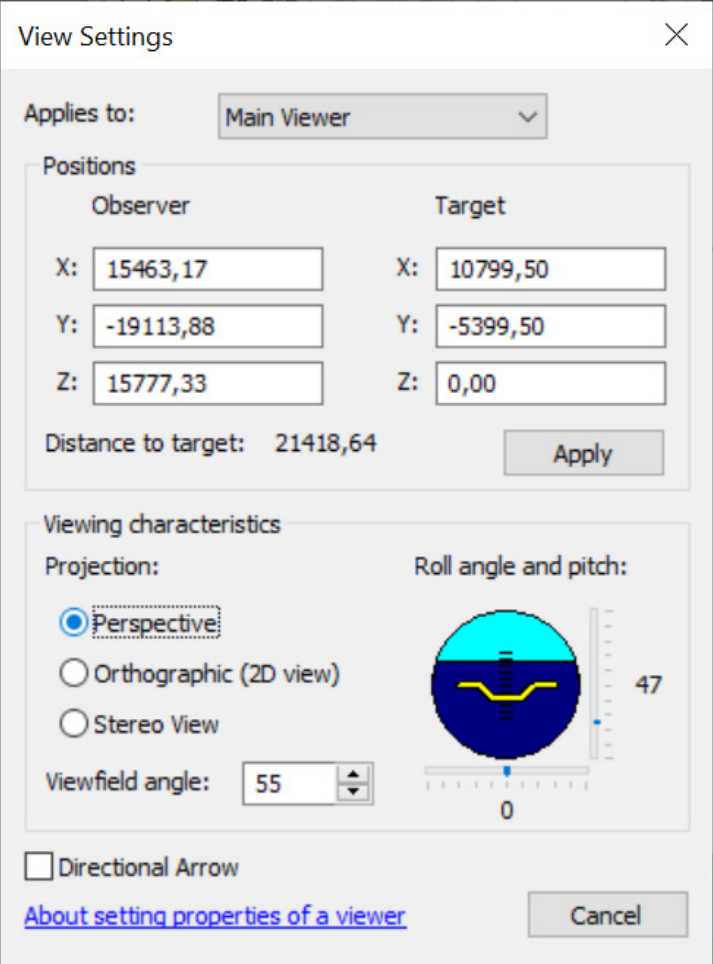

- Make sure Perspective View is enabled in View -> View Settings.
In case there are any issues with the visualization in the moreViz client, make sure to have followed these guides:
- Dual GPU & Quadro guide: For frozen or black image in client
- Fit the 3D into the host app’s viewport: in case geometry is missing in the moreViz client
- For best performance with HMD, set the connection type to shared memory in the moreViz Launcher’s Connection Settings (only available for single-client setups on the local computer).
- For best visual impression, set AntiAliasing / Pixel Density to 2x (or higher) in the moreViz Launcher’s Client Settings
- SteamVR only: To operate the host application’s graphics user interface, check the SteamVR Desktops function of the SteamVR Dashboard.
